submersible pump mechanical seals from China manufacturer - FengHua Weijin Mechanical Seals Factory

Price:	0.2~46.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 108

Production Capacity: 100000 sets/month

Delivery Date: 30 days

Style: Mechanical Seal

Brand Name: WJ

Rotary Ring: carbon/SIC/TC

Spring&Metal Parts: S.S/SUS304/SUS316

Means of Transport: Ocean

Packing: according to your requireme...

Standard or Nonstandard: Standard

Material: Others

Stationary Ring: ceramic/SIC/TC

Secondary Seal: NBR/EPDM/VITON

OPERATING LIMITS:
1.Pressure: 1Mpa
2.Speed: 10m/s
3.Temperature: -30℃~ 200℃

We mainly supply pump mechanical seals,auto cooling pump seals,industrial pump seals,carbon face seal and ceramic face seal,etc.

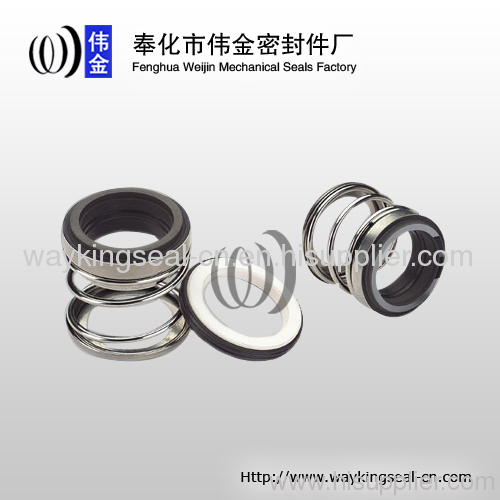

Features of single spring elastomer bellow shaft seals of submersible pumps
1.Model: type 108
2.Stationary Ring: ceramic/SIC/TC
3.Rotary Ring: carbon/SIC/TC
4.Secondary Seal: NBR/EPDM/VITON
5.Spring&Metal parts: steel

Drawing of single spring elastomer bellow shaft seals of submersible pumps

Sizes of single spring elastomer bellow shaft seals of submersible pumps

Model	d1	d3	d7	L1	L3
WJ108-9	9	20	21	20	4.5
WJ108-10	10	20	21	20	4.5
WJ108-11	11	22	23	20	4.5
WJ108-12	12	22	23	20	4.5
WJ108-14	14	24.5	25	25	5.5
WJ108-15	15	26.5	27	25	5.5
WJ108-16	16	26.5	27	25	5.5
WJ108-17	17	32	33	25	7
WJ108-18	18	32	33	25	7
WJ108-19	19	34	35	25	7
WJ108-20	20	34	35	25	7
WJ108-22	22	36	37	28	7
WJ108-25	25	39	40	32	7
WJ108-28	28	42	43	35	7
WJ108-30	30	44	45	35	7
WJ108-35	35	49	50	37	7
WJ108-40	40	56	58	40	8
WJ108-45	45	61	63	40	8
WJ108-50	50	67	70	45	8.5
WJ108-55	55	72	75	45	8.5
