seals of water pumps from China manufacturer - FengHua Weijin Mechanical Seals Factory

Price:	0.3~46.0 USD
Payment Terms:	T/T,L/C,WU
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: 155

Production Capacity: 100000 sets/month

Delivery Date: 30 days

Style: Mechanical Seal

Brand Name: WJ

Rotary Ring: ceramic/SIC/TC

Spring&Metal Parts: S.S/SUS304/SUS316

Means of Transport: Ocean

Packing: according to your requireme...

Standard or Nonstandard: Standard

Material: Others

Stationary Ring: carbon/SIC/TC

Secondary Seal: NBR/EPDM/VITON

used in water pumps and household pumps

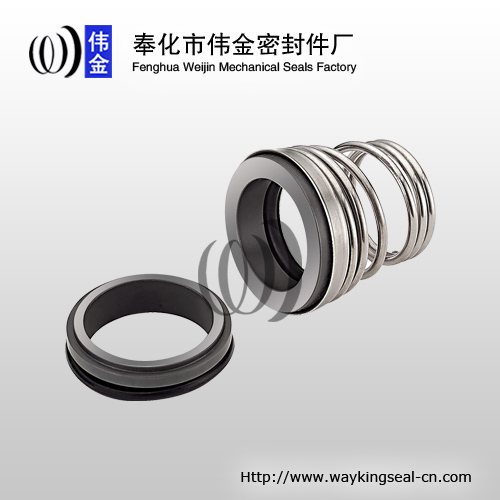

elastomer bellow shaft seals of water pumps and household pumps
Weijin Mechanical Seals Factory is specialized in production all types of pump kit machinery sealing elements and sealing auxiliary materials,such as pump mechanical seals,auto cooling pump seals,industrial pump mechanical seals and ceramic face seal,etc.The products are widely applied to machinery,chemical industry,pharmacy,auto industry and food,etc.

Features of elastomer bellow shaft seals of water pumps and household pumps
1. Model: 155
2. Stationary ring: carbon/SIC/TC
3. Rotary ring: ceramic/SIC/TC
4. Secondary seal: NBR/EPDM/VITON
5. Spring&Metal parts: S.S/SUS304/SUS316

Working conditions of elastomer bellow shaft seals of water pumps and household pumps
1. Pressure: ≤1Mpa
2. Speed: ≤15m/s
3. Temperature: -30ºC~200ºC

Drawing of elastomer bellow shaft seals of water pumps and household pumps

Size of elastomer bellow shaft seals of water pumps and household pumps

Model	d1	d3	d7	L1	L3
WJ155-10	10	20	18.1	20.5	5.5
WJ155-11	11	22	20.6	23.5	5.5
WJ155-12	12	22	20.6	23.5	5.5
WJ155-13	13	25	23.1	28	6
WJ155-14	14	25	23.1	28	6
WJ155-15	15	29	26.9	30	7
WJ155-16	16	29	26.9	30	7
WJ155-17	17	29	26.9	30	7
WJ155-18	18	33	30.9	32	8
WJ155-19	19	33	30.9	33	8
WJ155-20	20	33	30.9	33	8
WJ155-21	21	38	35.4	33	8
WJ155-22	22	38	35.4	33	8
WJ155-23	23	38	35.4	35	8
WJ155-24	24	38	35.4	35	8
WJ155-25	25	40	38.2	35.5	8.5
WJ155-28	28	46	43.3	39	9
WJ155-29	29	46	43.3	39	9
WJ155-30	30	46	43.3	39	9
WJ155-32	32	46	43.3	39	9
WJ155-33	33	48	53.5	50.5	11.5
WJ155-35	35	50	53.5	50.5	11.5
WJ155-38	38	58	60.5	50.5	11.5
WJ155-40	40	58	60.5	50.5	11.5
